Rotary premade pouch machine for stand-up pouches with or without zipper. Integrated multihead weigher provides precise dosing. Optional nitrogen flush and zipper close ensure premium retail presentation.

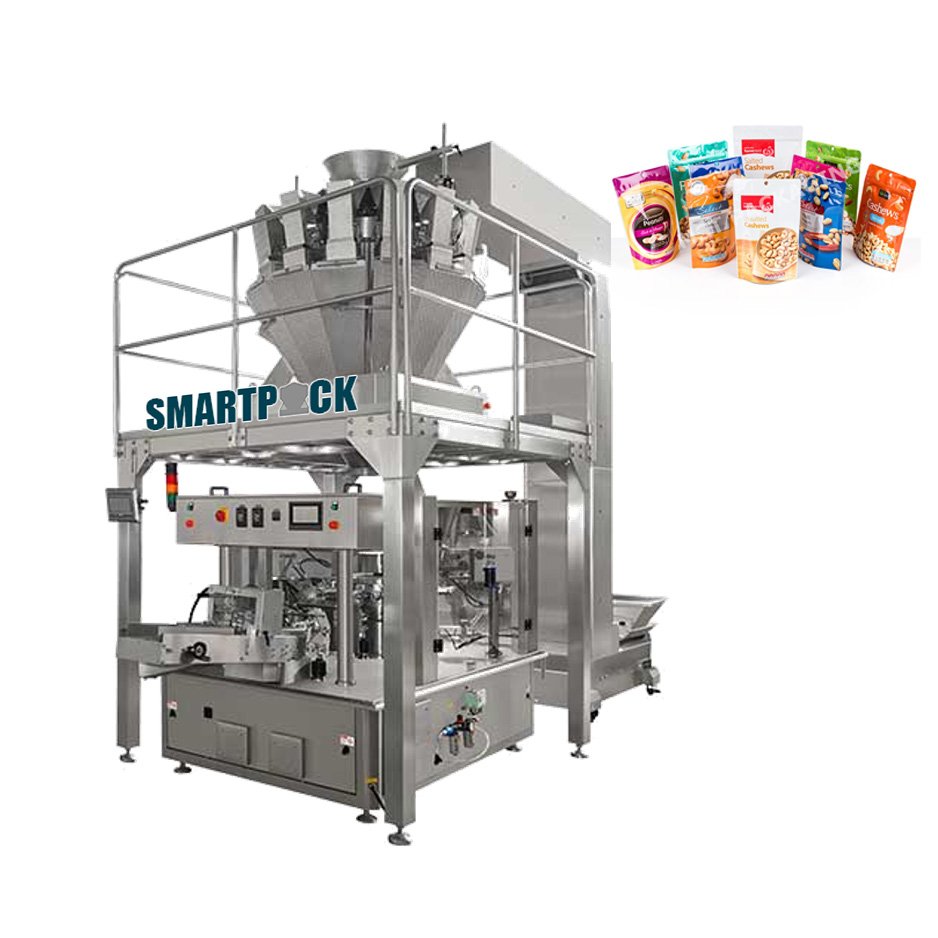

The Smartpack rotary pouch packer automates pouch pick-open-fill-seal for nuts. Its modular stations handle zipper opening, printing, filling, and sealing for a clean, premium look. Smart control for precision filling, no pouch no fill; no pouch no seal.
Application:
Almonds, cashews, pistachios, mixed nuts, trail mix, kernels.
Kindly Reminder:
Our R&D team can tailor infeed, weighers, forming sets, and QA modules to match your products and target retail formats.
| Name | Specification |
|---|---|
| Weigher Heads | 14 heads |
| Weighing Range | 10-2000 grams(14 head) |
| Accuracy | ±1.5 grams |
| Speed | Max. 55 packs/min |
| Bag Style | Premade pouch, premade flat pouch, doypack, zipper bag, stand up pouch |
| Bag Size | Length 150-350mm, width 100-250mm |
| Bag Material | Laminted, single layer, foil |
| Control Panel | 7″ touch screen |
| Power Supply |
Multihead weigher: 220V, 50/60Hz Pouch packing machine: 380V, 50/60Hz |
Gentle filling and controlled drop height to reduce breakage.
Fast pouch size changes with recipe recall.
Zipper reliability and leak-proof sealing for oily nuts.
Works with weighing system.
Compact footprint for existing lines.
Q1: Can it run Kraft paper pouches?
A1: Yes. The machine can handle laminated Kraft paper with heat-sealable inner layers. We can adjust sealing pressure and temperature profiles to ensure strong, consistent seals.
Q2: How long is changeover between different pouch sizes?
A2: Typically 10–15 minutes. Tool-less adjustments and memory recipe settings simplify changeovers and minimize downtime.
Q3: Can this machine handle oily or roasted nuts?
A3: Absolutely. All contact parts are made of food-grade stainless steel with anti-stick coatings. The filling path and sealing jaws are designed to handle oily residues effectively.
Q4: What is the recommended pouch material for best results?
A4: Multi-layer laminates such as PET/AL/PE or PET/PE provide the best sealing performance and aroma retention for roasted and flavored nuts.
